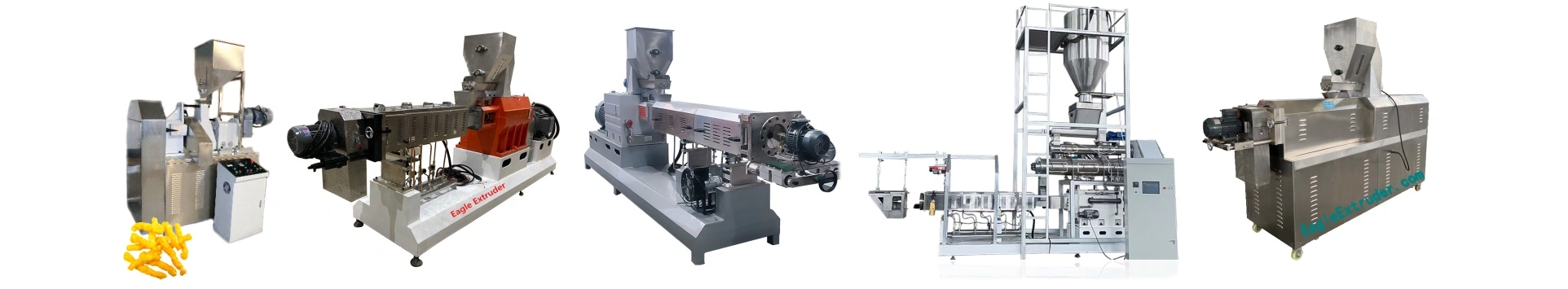

Twin Screw Extruder

Twin Screw Food Extruder is a cutting-edge machine widely used in the food processing industry to produce diverse products with precision, efficiency, and scalability. Its advanced technology and robust design make it suitable for creating snacks, cereals, pet food, and more.

Key Features:

1. Twin-Screw Design:
   • Features two intermeshing screws for superior mixing, shearing, and cooking.
   • Ensures precise control of temperature, pressure, and speed for consistent results.
2. Versatility:
   • Capable of processing various raw materials, including grains, proteins, and starches.
   • Supports production of multiple shapes and textures with interchangeable molds and dies.
3. Advanced Automation:
   • Equipped with a user-friendly PLC system for real-time monitoring and control.
   • Simplifies operation and reduces maintenance.
4. Energy Efficient & Durable:
   • Optimized for low energy consumption and high output.
   • Made with high-grade stainless steel for hygiene and longevity.

Working Principle:

The twin screw extruder operates by feeding raw materials into the hopper. The intermeshing screws then transport and process the mixture under controlled heat and pressure. After cooking, the material passes through a die to shape the product, which is then cut to size.

Applications:

• Snack Foods: Corn puffs, chips, crackers, and flavored extruded snacks.
• Snack Pellets: 2D snack pellet, 3D snack pellet in different shapes. Raw materials for puffed and fried snack production.
• Baby Food/Nutritional Powder: Easily digestible and nutrient-rich powders.
• Modified Starch/Pregel Starch: Used in food, paper, and textile industries.
• Bread Crumbs: For coating and cooking applications.
• FRK/Artificial Rice/Micro Rice Pellets: Nutritional rice alternatives or fortified rice kernels.
• Pet Food & Aquatic Feed: Dry and semi-moist food for pets and feed for fish.
• Meat Analogues: Textured vegetable proteins (TVP) for vegan and vegetarian diets.
• Extruded powder : Ingredient for Pet Food: Used in formulations for improved digestibility and binding. Aquatic Feed: Enhances water stability and floatation in fish feed pellets.

Advantages:

• Customizable for a variety of products and production needs.
• High efficiency reduces operational costs and ensures consistent quality.
• Flexible production enables rapid adaptation to market trends.
• Hygienic and easy to clean, complying with food safety standards.

Specifications (Example):

• Screw Diameter: 65mm to 150mm
• Capacity: 100kg/h to 10 000kg/h
• Screw Material: High-strength alloy steel
• Heating Zones: Multiple independently controlled zones
• Main Power: 22kW to 300kW

Why Choose Our Twin Screw Food Extruder?

This extruder is an essential solution for manufacturers aiming to expand or innovate their product lines. With unmatched versatility and precision, it empowers businesses to stay competitive while maintaining exceptional quality standards.

For detailed specifications, customization inquiries, or to schedule a live demonstration, contact us today!

Front cutting type extruders , which is more convenient to operate the cutting device. No need every time regulate the knife space with the mould.

Front cutting is more convenient to adjust the knife position.

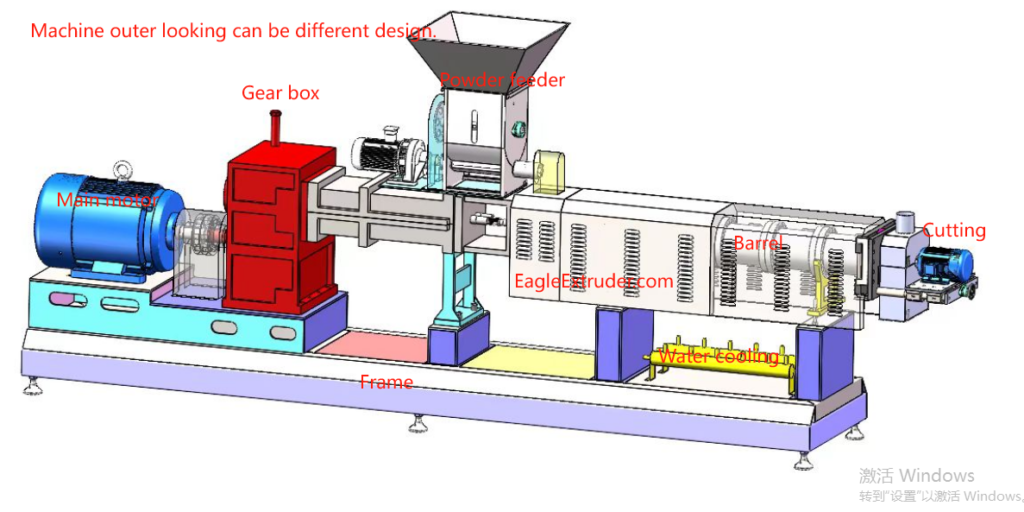

1. Twin screw extruder are consisting of feeding system, extruding system, cutting system, heating system, and Gearing system and controlling system.

2. Feeding system, extruding system and cutting system, adopts frequency speed controlling with high automation and stable per-formation.

3. Automatic lubrication and cooling system guarantee the extruder running safely.

4. According to different material, we can choose the relative single or double screw feeding system; the material should be uniformity and stable.

5. Screw is made by special technique, is able to bear grinding, steady and reliable, longer using life.

6. According to different screws design rate to meet different technology request

Parameters

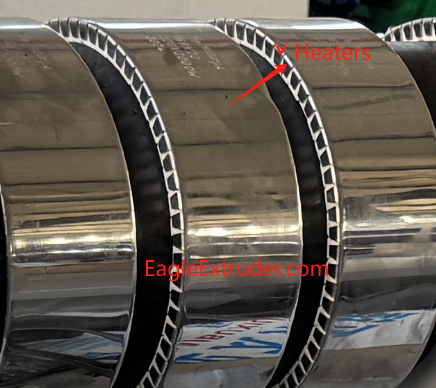

Ceramic insulated band heaters - this is for barrel heating , there are temperature controller for extruders.

Built-in ceramic fiber insulation layer ,the heater can reduce 30% of its power

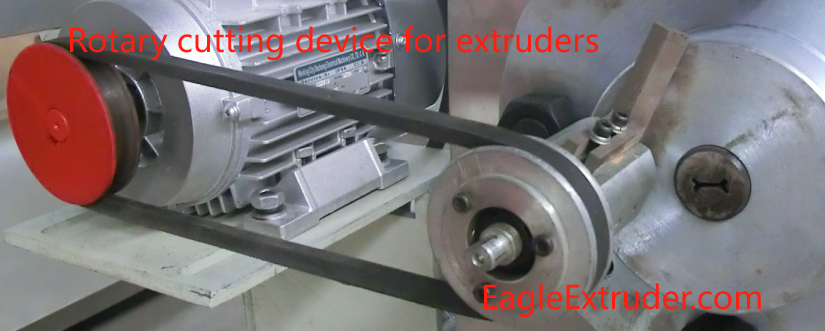

Cutting device of food extruder-Kinfe, blades
